設備占地面積：5800*5800*2000mm；

設備總重：約6500kg；

電機規格：圓盤公轉電機：2.2KW；立柱主電機：5.5KW；立柱前后電機：0.75KW；

40kg機械手功率：約6KW；

圓盤直徑1.8米，40kg機械手*4；

M20立柱*4；

膠輪規格：直徑?100-?350mm；寬度1″-3″;

耗材規格：長162″，寬1″-3″；

適用耗材：砂帶、消音輪。

工作線速度：20m/s;

Equipment area: 5800*5800*2000mm;

Total weight of equipment: about 6500kg;

Motor specifications: disc revolution motor: 2.2KW; column main motor: 5.5KW; column front and rear motor: 0.75KW;

40kg robot power: about 6KW;

Disc diameter 1.8 meters, 40kg robot *4;

M20 column *4;

Rubber wheel specifications: diameter ?100-?350mm; width 1′′-3′′;

Consumables specifications: length 162", width 1"-3";

Applicable consumables: abrasive belt, silencer wheel.

Working line speed: 20m/s;

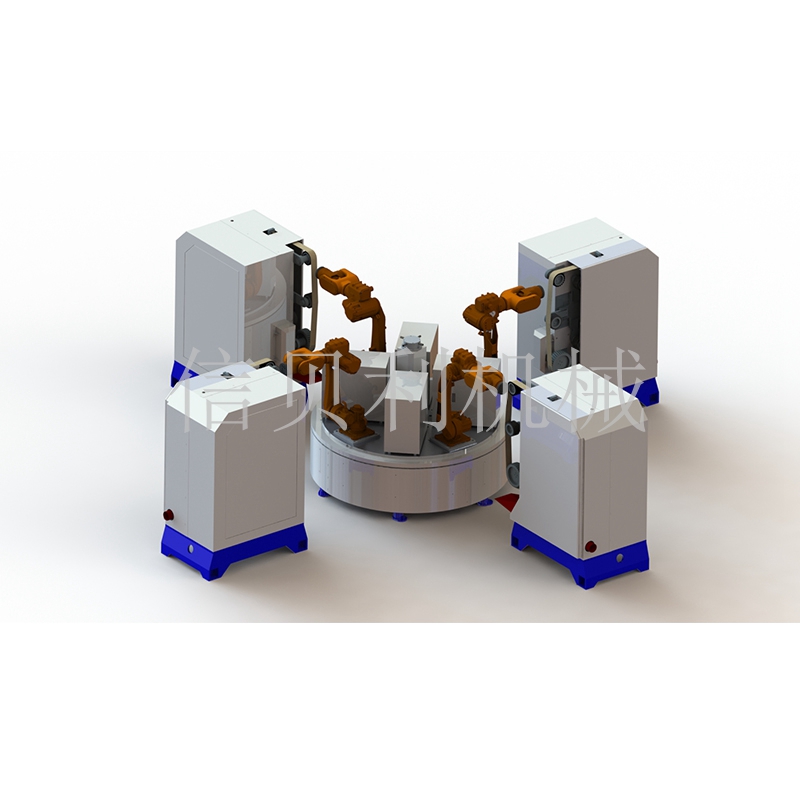

機械手圓盤配合M20砂帶立柱由全自動伺服操作系統控制，每個機械手可經過四道工序，實現不同精細度加工；

M20砂帶立柱可實現自動調整砂帶與工件接觸深度，確保達到加工效果；

M20砂帶立柱可自動糾正砂帶偏移；

圓盤上放置四臺機械手，大幅減少占用空間的情況下大大提升設備的效率；

可根據不同的工件需求利用膠輪的不同部位或不同的膠輪進行加工，也可在膠輪上進行仿形；可加工平面、弧面、接縫位等；

適用于各種中高產量的形狀各異、多個弧面連接的衛浴五金件等。

The manipulator disc and the M20 sanding belt column are controlled by a fully automatic servo operating system. Each robot can go through four processes to achieve different fineness processing;

M20 sand belt column can automatically adjust the contact depth between the belt and the workpiece to ensure the processing effect;

M20 sand belt column can automatically correct the belt offset;

Four robots are placed on the disc to greatly reduce the efficiency of the equipment when the space is greatly reduced;

It can be processed by different parts of the rubber wheel or different rubber wheels according to different workpiece requirements, or it can be profiled on the rubber wheel; it can process plane, arc surface, seam position, etc.

Applicable to all kinds of medium and high-volume bathroom hardware with different shapes and multiple curved surfaces.
